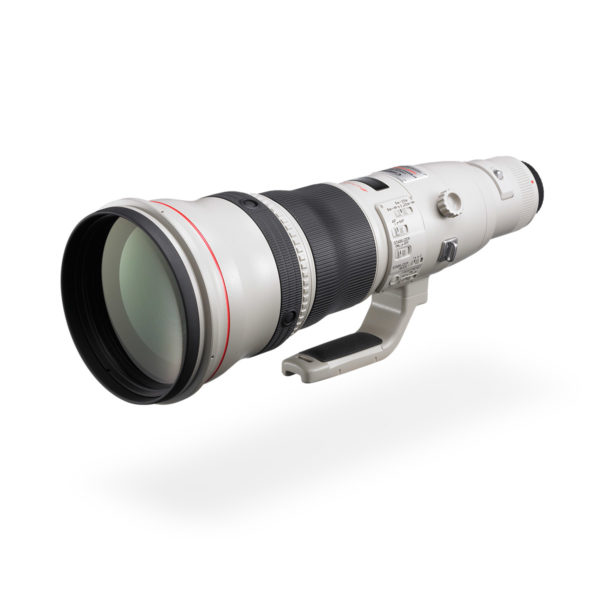

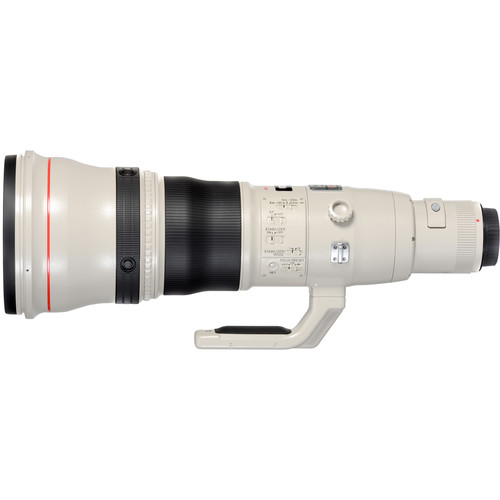

EF 800mm f/5.6L IS USM

EF 800mm f/5.6L IS USM

A super-telephoto lens, boasting very high magnification and excellent image quality to help you get the perfect shot in tough conditions.

The 800mm telephoto and Image Stabilizer is an unrivaled combination. The EF 800mm f/5.6L IS USM super-telephoto has a construction of 2 fluorite elements and 1 super UD and 1 UD element which help to minimize colour aberrations and capture sharp, high-contrast images. It is durable and lightweight. The EF 800mm f/5.6L IS USM super-telephoto provides huge magnification, making it suited to wildlife and sports photography, as well as specialist applications, such as surveillance.

fluorite-lens-elements_b aspherical-lens-elements-1 image-stabilizer_b ring-usm inner-focusing full-time-manual-focusing_b dust-and-drip-resistant-fluorine-coating_b circular-aperture-diaphragm_b

Highlights

  • L-series construction
  • Four-stop Image Stabilizer with tripod detection
  • Fluorite, UD and super-UD lens elements
  • 4.5kg magnesium alloy build
  • Super Spectra lens coatings
  • USM autofocus with full-time manual focus

SKU: Prod001-3-1-1-1-2-1-1-1-1 Categories: ,

Overview

This is the longest telephoto lens among Canon’s lineup, and a terrific choice for any long-distance application-outdoor sports, wildlife, news photojournalism, and so on. It’s actually lighter than Canon’s EF 600mm f/4L IS lens, weighing just under 10 lbs. It uses a refined optical design, with two fluorite lens elements, one UD element, and one Super-UD-glass element, for outstanding correction of color fringing and superb contrast and sharpness. This super-telephoto lens uses magnesium-alloy barrel construction to enhance its light weight, and has weather-resistant gaskets throughout for use in harsh conditions. It’s compatible with both the EF 1.4x II and 2x II tele extenders for even more reach: EOS cameras with 45 AF points will continue to provide autofocus at the center AF point when the lens is used with the 1.4x extender. Finally, it’s image stabilized, providing up to 4 stops of correction for camera shake. This makes it even more practical in many situations.

L-series quality

The L-series is Canon’s flagship professional lens range, representing the best in precision-designed EF optics. L-series lenses combine superior performance with superlative handling, and are highly resistant to dust and moisture.





Four-Stop Image Stabilizer

Image Stabilizer (IS) technology allows the use of shutter speeds up to four times slower than normal, with no perceptible increase in image blur. Automatic panning detection turns off IS in either the horizontal or vertical direction when following moving subjects.

Aspherical, Fluorite, UD and Super-UD elements

For optimum visual performance, the lens incorporates four types of special optical elements: aspherical elements to correct spherical aberrations, and Fluorite, UD (ultra-low dispersion) and Super UD elements to eliminate secondary chromatic aberrations. The result is crisp, high-contrast and undistorted image quality, all the way to the edge of the frame.

Magnesium alloy build

At just 4.5kg, the EF 800mm f/5.6L IS USM is a relatively lightweight super-telephoto lens, suitable for limited hand-held shooting. Its magnesium alloy build keeps its weight comparable to shorter telephoto lenses.

Ultrasonic focusing

A ring-type ultrasonic motor drives autofocus extremely quickly, and in near silence. Excellent holding torque ensures the point of focus is reached accurately, without overshooting. Furthermore, full-time manual override is available, making it possible to adjust focus without leaving AF mode.

Super Spectra coating

Super Spectra coatings ensure accurate colour balance and enhance contrast. They also reduce flare and ghosting – a common problem caused by light bouncing off a camera’s sensor.

Smooth background blur

A virtually circular aperture diaphragm gives out of focus regions a softer, more uniform feel. Sharp foreground objects stand out against a smooth blurred background.







Features

Fluorite Lens Elements

Substantially corrects chromatic aberrations in the telephoto range

Fluorite is a type of mineral that is the crystallised form of calcium fluoride. It possesses optical properties such as a low refractive index and a low dispersion. Natural fluorites are small in size, and cannot be used in DSLR camera lenses. In 1969, Canon established a technology for creating artificial crystal fluorite and developed a special technology with a polishing process that takes four times longer than usual, the first in the world to succeed in commercialising the use of fluorite in photographic lenses. By utilising the low-dispersion characteristics of fluorite, the occurrence of secondary spectrum, which is unavoidable in conventional optical glass, can be eliminated almost entirely. Image quality is significantly enhanced as a result, enabling vivid, sharp, and yet detailed image expression.

fluorite-lens-elements1



Super UD Lens Elements, UD Lens Elements

Effect similar to fluorite lens elements

The chromatic aberration correction effect is remarkable when a fluorite element is used. However, due to the high cost of fluorite compared to other materials, it cannot be employed widely on many lenses. To resolve this issue, Canon developed the UD (Ultra Low Dispersion) lens element, which is characterised by a low refractive index and low dispersive properties. It is widely employed in many lenses due to its ability to enhance the elimination of secondary spectrum.

ud-lens-elements1



IS (Image Stabilizer)

In-lens correction of camera shake

Canon was the first in the world to develop the IS (Image Stabilizer), an in-lens system to correct camera shake in DSLR cameras. Compared to the in-camera Image Stabilizer feature, not only is the IS capable of stabilising the viewfinder image, it also helps to improve AF accuracy.
The underlying principle is that the amount of misalignment between the image of the subject and the optical axis of the lens is detected by two vibration-detecting gyro sensors. The corrective optical system inside the lens is then moved accordingly in the vertical or horizontal direction to stabilise the image of the subject on the imaging plane.
Most blurry pictures occur as the result of camera shake, which inevitably happens when you take handheld shots. Such blurring is more obvious at slow shutter speeds, which usually occur at low light settings such as during indoor portrait or night street photography because the low amount of light requires the sensor to be exposed for longer. For that reason, photographers usually make up for that by setting a higher ISO speed or using a tripod and remote shutter release. Both have their merits, but also some demerits.

For instance, while increasing the ISO speed also increases the shutter speed, noise occurs at high ISO speeds. There is therefore a limit to how high you can set the latter without compromising on image quality. Similarly, while using a tripod and remote shutter release keeps camera shake to a minimum, they are practical only for certain shooting scenes as prior setup is required.

IS, on the other hand, is able to suppress camera shake to a certain degree even for such scenes, increasing the range of scenes for which you can take handheld shots. Depending on the lens, the image stabilization effect may allow you to shoot at 2-5 shutter speed stops slower than without IS.

image-stabilizer1

With IS function  image-stabilizer2

Without IS function



Ring USM, Micro USM, Nano USM

Enables silent and high-speed focusing

USM (Ultrasonic Motor) was first put into practical application in the world by Canon. USM drives the lens by transforming ultrasonic vibrations into rotation energy. Not only does it consume little power, it has high efficiency, torque and response, enabling high-speed focusing with almost no operating sound emitted.

There are three types of USM . The round-shaped Ring USM is simple in structure, and is best suited for use in a circular lens tube. It is especially useful for driving lenses such as large-diameter or super telephoto ones due to its high torque, and it also allows for full-time manual focusing. Meanwhile, the Micro USM can be employed on many types of lenses because it is low in cost and not subject to restrictions on the lens diameter. In 2002, Canon contributed further to the downsizing of lenses with the development of the Micro USM II, which is about half the size and weight of the Micro USM . And in 2016, Canon introduced Nano USM, which not only realizes a high speed AF that rivals that achieved by Ring USM, but also is able to operate quietly and seamlessly. It’s not an exaggeration to describe Nano USM as the most ideal motor for normal-use lenses that are meant to handle both still photography and movie shooting.

 Rung USM

ring-micro-usm2

Micor USM (Left), Micro USM II (Right)

ring-micro-usm1

Nano USM—The thin and tiny USM motor that achieves fast and smooth AF

Thin and compact, this USM, the latest to be developed by Canon, made its debut in 2016 on the EF-S18-135mm f/3.5-5.6mm IS USM. Computer chip-shaped (a factor that allows a more compact lens design) with power sources in the form of transducers, it connects directly to the AF actuating mechanism. It possesses a speediness and responsiveness that rivals that of the Ring USM, combined with a control that equals that of STM (lead screw-type). Its main benefit lies in enabling quiet, smooth AF operation in compactly-sized lenses such as standard zoom lenses. Also very suitable for movie-shooting, its high speed AF is able to handle scenes with subjects that are moving at a fast speed as well as those with unpredictable movements.

ring-micro-usm3

The Nano USM is shaped like a computer chip, and has 2 transducers in its center.

Ef 16-35mm f2.8L III USM Cross Section Ef 16-35mm f2.8L III USM Cross Section 2

A cross section of the EF-S18-135mm f/3.5-5.6 IS USM, released in 2016 and the first lens to carry the Nano USM. Moving along the top of the slider, the Nano USM directly drives the main AF power source. As this motor not only allows for fast and smooth AF but is also small in size, it makes it possible for the lens that utilize it to be around the same size as lenses with STM.



Inner Focusing, Rear Focusing

Enables high-speed and precise AF

The inner focusing and rear focusing systems adjust the focus by moving only some of the lens elements inside the lens. Inner focusing refers to the type where the focusing lens group is located in front of the aperture diaphragm, while this group is positioned behind the aperture diaphragm in the case of the rear focusing type. As a smaller number of lens elements need to be moved, AF speed can be increased, and the size and weight of the entire lens can also be reduced. Besides, the front of the lens does not extend out during focusing, thus making it easy to achieve an integral lens structure, which in turn contributes to the enhanced robustness of the design. Yet another advantage of this system is that it enhances the operability of polarising filters as the filter mount does not rotate during focusing.

 inner-rear-focusing1

EF24-70mm f/2.8L USM Rear System

 inner-rear-focusing2

EF400mm f/5.6L USM Rear System

inner-rear-focusing3

EF70-200mm f/2.8L IS II USM Inner System

Full-time Manual Focusing

Enables MF immediately after AF

Many of Canon’s EF lenses are equipped with “full-time manual focusing”, which allows manual focus right after auto focus is complete, just by turning the focusing ring and without the need to switch to MF mode. All Ring USM and STM lenses support full-time manual focusing.

full-time-manual-focusing1

Dust- and Drip-Resistant, Fluorine Coating

Dust- and drip-proof for shooting under harsh conditions

Many of Canon’s L lenses come with a dust- and drip-proof structure, with rubber sealing applied to the interface area between the joint of the mount and the camera, as well as sealing at the movable parts such as the focusing ring and the lens extension tube. Rubber materials are also employed even at the smallest parts, such as the switch panel and the insertion slot of the drop-in filter compartments. The excellent dust- and drip-resistance enhances the usability of lenses under adverse weather, and helps to address the needs of professional photographers who are required to perform shoots under harsh shooting conditions. Fluorine-coated lenses allow dirt attached to the lens to be wiped off easily.

dust-and-drip-resistant-fluorine-coating1







Circular Aperture Diaphragm

Expresses point light sources in beautiful round bokeh

The aperture is made up of several blades, the number of which determines the shape of the bokeh effect, such as in the case of illumination, light seeping through the leaves of a tree, and light reflection from the water surface. Light normally appears round when seen through our eyes, thus expressing light in a circular shape adds a more natural and soft touch to the resulting image. Almost all EF lenses employ a circular aperture diaphragm.





Specifications

PHYSICAL SPECIFICATIONS

Specification Details
PRODUCT WEIGHT INPUT-1 4500 g
FILTER DIAMETER (MM) 52 Drop in
MAXIMUM DIAMETER X LENGTH (MM) 163 x 461
WATER/DUST RESISTANCE Yes

OPTICAL CHARACTERISTICS

Specification Details
AF ACTUATOR Ring USM
DISTANCE INFORMATION Yes
LENS CONSTRUCTION (ELEMENTS/GROUPS) 18/14
MINIMUM APERTURE 32
AF ACTUATOR AF FOOTNOTE Full time Manual focus
MAGNIFICATION WITH EXTENSION TUBE EF12 II 0.16-0.02
MAGNIFICATION WITH EXTENSION TUBE EF25 II 0.19-0.04
ANGLE OF VIEW 2° 35’, 1° 40’, 3° 5’’
MAGNIFICATION 0.14

ACCESSORIES

Specification Details
EXTENDER COMPATIBLITY  Compatible

SPECIFICATIONS WITH EXTENDER 2x III

Specification Details
IS Yes
AF POSSIBLE No

SPECIFICATIONS WITH EXTENDER 1.4x III

Specification Details
IS Yes
AF POSSIBLE Yes
AF POSSIBLE FOOTNOTE AF possible with EOS-1 series, EOS 5D Mark III (with firmware 1.2.1) and EOS 5D Mark IV

Reviews

There are no reviews yet.

Be the first to review “EF 800mm f/5.6L IS USM”

Your email address will not be published. Required fields are marked *

QR Code

QR Code

You may also like…

You may be interested in…

Search or select product to compare

EF 70-200mm f/2.8L IS III USM

EF-S 24mm f/2.8 STM Lens

EF 300mm f/2.8L IS II USM

EF 16-35mm f/2.8L III USM Lens

EF 800mm f/5.6L IS USM

Price:₨
  • Mount : EF

  • Aperture : f/5.6

  • Lens Type : Fixed/Prime Lens

  • Category : Super Telephoto

  • Focal Length Range : 800mm

  • Photography Genre : Sport & Wildlife

  • Technology : USM

  • Dust/Moisture resistance : Yes

  • Weight : 4500 g

  • Luxury Lens : Yes

  • IS System : Yes

  • Lens Construction (Elements/Groups) : 18 elements in 14 groups

  • Filter Diameter (mm) : 52 DI

  • Closest Focusing Distance (m) : 6.0

  • Length (mm) : 461
